Introduction: The left ventricle (LV) not only contracts, but its
rotational mechanics have a significant role in systolic ejection, whereas the
right ventricle (RV) is substantially different in shape and function, and its
contractility is not accompanied by rotational features. Simple M-mode
echocardiography-based tricuspid annular plane systolic
excursion (TAPSE) reflects RV longitudinal contraction or shortening.
The aim of the present study was to examine the relationship between the
parameters characterizing the rotational mechanics of the LV as assessed by
three-dimensional speckle-tracking echocardiography (3DSTE) and the TAPSE. The
effects of different degrees of these parameters on each other were also
examined. Methods: The present retrospective analysis evaluated the
results of 80 healthy adult individuals with an average age of 28.1
Modern echocardiographic techniques help to perform a detailed analysis of the cardiac mechanics of both ventricles allowing physiological assessments. Although the two types of movement cannot be separated, the walls of the left ventricle (LV) not only contract during the cardiac cycle represented by deformation parameters, but the walls have their rotational mechanics as well [1, 2]. It has been demonstrated that LV rotational mechanics contribute significantly to LV ejection [1, 3]. The right ventricle (RV) is substantially different in shape and function compared to the LV, but its contractility is not accompanied by rotational features [4, 5]. The long-used and validated, simple M-mode echocardiography-derived tricuspid annular plane systolic excursion (TAPSE) reflects RV longitudinal contraction or shortening [6, 7, 8, 9, 10]. Whereas LV and RV functions differ, comparing their subfunctions could help us understanding the physiology of their interdependence and interplay [11]. The aim of this study was to examine the relationship between the parameters characterizing the rotational mechanics of the LV as assessed by three-dimensional speckle-tracking echocardiography (3DSTE) and the TAPSE, a quantitative feature of RV longitudinal shortening in real clinical settings by imaging methods in healthy subjects. We examined the effects of different degrees of these parameters on each other as well.
The present retrospective analysis comprised 80 healthy adult volunteers with a
mean age of 28.1
Professional guidelines and accepted practices were followed for 2D Doppler
cardiac ultrasound measurements. A Toshiba Artida
M-mode echocardiography-derived measurement of tricuspid annular plane systolic excursion (TAPSE). Abbreviations: TAPSE, tricuspid annular plane systolic excursion; RA, right atrium; RV, right ventricle; LA, left atrium; LV, left ventricle.
During 3DSTE studies, the same Toshiba Artida
Apical longitudinal 4-chamber (AP4CH) and 2-chamber (AP2CH) views and apical, midventricular and basal cross-sectional planes were automatically selected by the software during analysis. Mitral annular (MA)-LV lateral and septal edges and the endocardial surface of the LV apex were defined. Then a sequential analysis was started to create a virtual 3D cast of the LV helping to determine the following LV rotational parameters using a 3D cast of the LV [17] (Fig. 2):

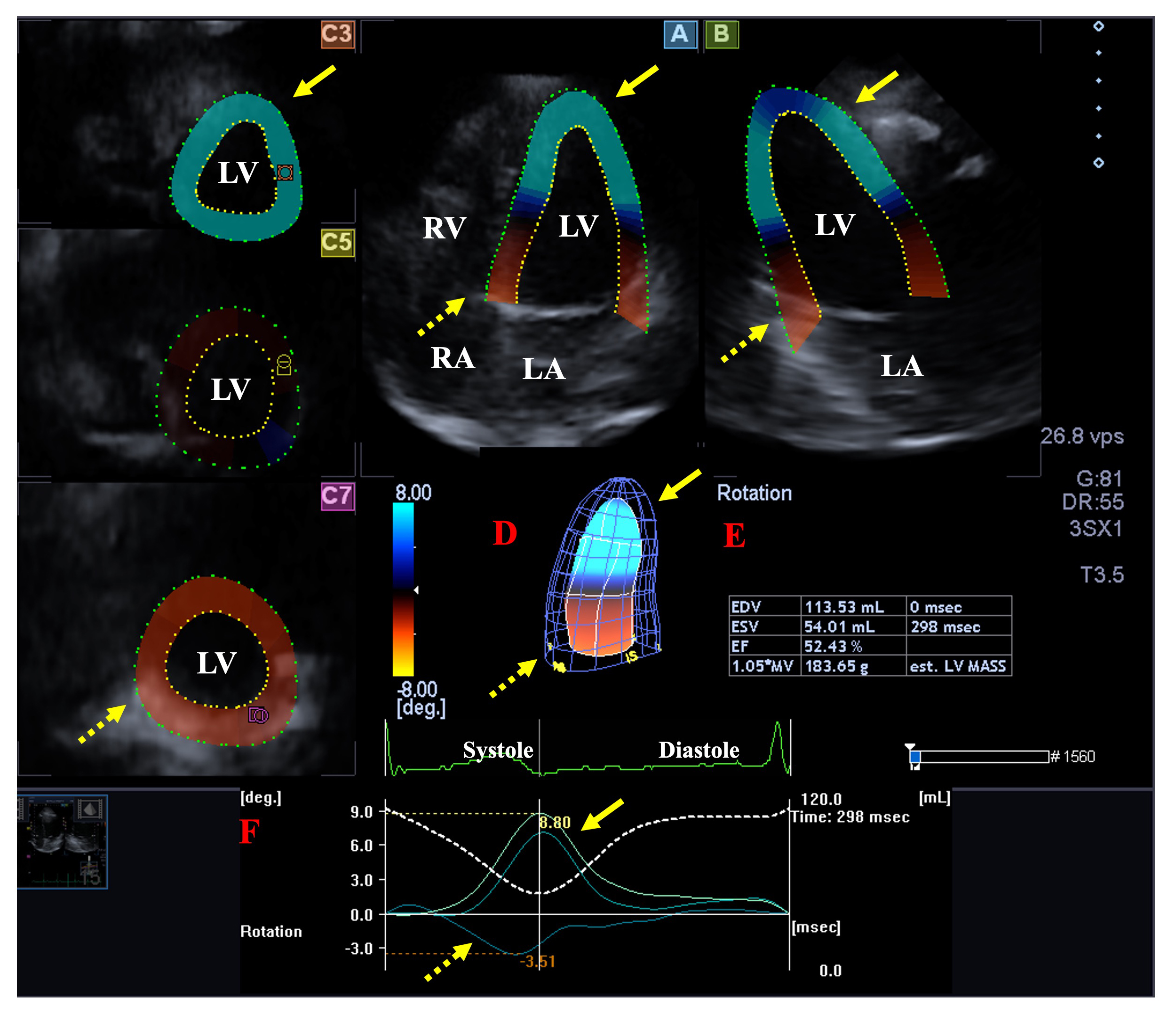

Analysis of the rotational mechanics of the left ventricle (LV) by three-dimensional (3D) speckle-tracking echocardiography. Apical longitudinal four-chamber (A) and two-chamber views (B) and short-axis views at apical (C3), midventricular (C5) and basal LV levels (C7) are shown together with a 3D model of the LV (D) and calculated LV volumetric data (E). Time - LV apical (yellow arrows) and basal (dashed yellow arrows) rotation curves are shown together with time - LV volume change curve during the cardiac cycle (F). Abbreviations: EDV, end-diastolic volume; ESV, end-systolic volume; EF, ejection fraction; RA, right atrium; RV, right ventricle; LA, left atrium; LV, left ventricle.
- clockwise basal LV rotation (in degrees).
- counterclockwise apical LV rotation (in degrees).
- LV twist (net difference of LV apical and basal rotations in degrees).
- time-to-peak LV twist (in milliseconds).
There is a special form of LV rotational mechanics when the direction of LV apical and basal rotations are in the same clockwise/counterclockwise direction, therefore LV twist cannot be measured, and only an LV apico-basal gradient is present (so-called LV ‘rigid body rotation’, RBR). Subjects with LV-RBR were not involved in this study [18].
In RA-focused images, similarly to the images focusing on the LV, data were displayed in selected apical longitudinal two- (AP2CH) and four-chamber (AP4CH) views and 3 short-axis views at basal, midatrial and superior levels at end-diastole. A 3D model of the RA was created following the definition of septal and lateral RA-TA edges and RA apex in AP2CH and AP4CH views at end-diastole, then the endocardial RA surface was reconstructed with sequential analysis. The following RA volumes were obtained [19] (Fig. 3):
Assessment of the right atrium by three-dimensional (3D)
speckle-tracking echocardiography. Apical four-chamber (A) and two-chamber views
(B) and short-axis views at basal (C3), midatrial (C5) and superior RA levels
(C7) are demonstrated together with a 3D RA cast (D) and calculated RA volumes
(E). Time - RA volume changes curve represented by a white dashed line is also
shown (F). Abbreviations: LA, left atrium; LV, left ventricle; RA, right atrium;
RV, right ventricle; EDV, end-diastolic volume; ESV, end-systolic volume; EF,
ejection fraction; V
- maximum RA volume, measured at end-systole, just before the opening of the
tricuspid valve (V
- RA volume before atrial contraction, measured at early-diastole at the time of
the P wave on the ECG (V
- minimum RA volume measured at end-diastole, just before the closure of the
mitral valve (V
Mean
Normal clinical and routine 2D Doppler echocardiographic parameters were found in all cases as presented in Table 1.
Data | Measurements | |
Clinical data | ||
n | 80 | |
Mean age (years) | 28.1 | |
Males (%) | 33 (41%) | |
Systolic blood pressure (mmHg) | 120.8 | |
Diastolic blood pressure (mmHg) | 78.4 | |
Heart rate (1/s) | 71.2 | |
Height (cm) | 170.2 | |
Weight (kg) | 72.8 | |
Body surface area (kg/m |
1.86 | |
Two-dimensional echocardiographic data | ||
LA diameter (mm) | 36.9 | |
LV end-diastolic diameter (mm) | 48.1 | |
LV end-systolic diameter (mm) | 32.4 | |
LV end-diastolic volume (mL) | 105.8 | |
LV end-systolic volume (mL) | 38.3 | |
Interventricular septum (mm) | 9.1 | |
LV posterior wall (mm) | 9.2 | |
LV ejection fraction (%) | 64.5 | |
Early diastolic mitral inflow velocity - E (cm/s) | 82.8 | |
Late diastolic mitral inflow velocity - A (cm/s) | 55.6 |
Abbreviations: LA, left atrial; LV, left ventricular.
According to guidelines, TAPSE is considered to be normal if
No difference was found in the case of LV volumes and the rotational parameters
in healthy cases with TAPSE 18–21 mm vs. TAPSE
All subjects | TAPSE 18–21 mm | TAPSE | |
(n = 80) | (n = 21) | (n = 59) | |
LV-EDV (mL) | 85.7 |
82.4 |
86.9 |
LV-ESV (mL) | 36.2 |
34.4 |
36.8 |
LV-EF (%) | 57.9 |
58.9 |
57.6 |
LV mass (g) | 164.2 |
161.3 |
165.2 |
LV basal rotation (°) | –4.10 |
–4.20 |
–4.06 |
LV apical rotation (°) | 9.37 |
9.40 |
9.36 |
LV twist (°) | 13.47 |
13.60 |
13.42 |
time-to-LV twist (ms) | 354 |
376 |
346 |
RA-V |
50.4 |
47.0 |
51.5 |
RA-V |
35.2 |
33.4 |
35.8 |
RA-V |
27.4 |
25.8 |
27.9 |
TAPSE (mm) | 23.7 |
20.3 |
24.9 |
*p
TAPSE showed no association with the degree of basal LV rotation. A tendentious increase of LV-ESV and a decrease of LV-EF could be detected with higher basal LV rotation. Moreover, RA volumes showed a slight increase as well (Table 3).
basal LV |
–1.79° |
–6.41° |
apical LV |
5.33° |
13.41° | |
(n = 9) | (n = 58) | (n = 13) | (n = 12) | (n = 54) | (n = 14) | |
LV-EDV (mL) | 87.8 |
85.6 |
88.2 |
83.2 |
86.8 |
83.6 |
LV-ESV (mL) | 32.9 |
35.7 |
40.8 |
36.7 |
36.8 |
33.2 |
LV-EF (%) | 60.1 |
58.5 |
53.6 |
55.9 |
57.4 |
61.7 |
LV mass (g) | 156.2 |
163.4 |
173.2 |
179.8 |
165.3 |
154.9 |
LV basal rotation (°) | –1.06 |
–3.63 |
–8.29 |
–3.72 |
–4.29 |
–3.69 |
LV apical rotation (°) | 9.53 |
9.53 |
8.52 |
3.05 |
9.15 |
15.64 |
LV twist (°) | 10.60 |
13.16 |
16.81 |
6.77 |
13.44 |
19.32 |
time-to-LV twist (ms) | 268 |
368 |
349 |
332 |
360 |
348 |
RA-V |
50.6 |
48.9 |
56.4 |
44.8 |
50.2 |
55.5 |
RA-V |
32.7 |
34.0 |
41.5 |
32.4 |
35.1 |
38.1 |
RA-V |
25.1 |
26.8 |
31.1 |
25.1 |
26.9 |
30.9 |
TAPSE (mm) | 23.0 |
23.9 |
23.4 |
23.3 |
23.8 |
23.6 |
*p
Similar to basal LV rotation, TAPSE did not change with the degree of apical LV rotation. While LV-EDV and basal LV rotation did not show any changes with increasing apical LV rotation, a tendentious increase of LV-EF could be detected. Similar to basal LV rotation, a tendentious increase in RA volumes could be demonstrated with increasing apical LV rotation (Table 3).
No correlations were found between apical and basal LV rotations and TAPSE.
In recent decades, echocardiography has undergone enormous technical developments, and in addition to the previously used M-mode, 2D and Doppler echocardiography, speckle-tracking (STE) and 3D echocardiography have also appeared. If the STE examination of a heart cavity takes place in a given cross-sectional plane, it is 2DSTE, if it occurs in a 3D database, it is 3DSTE [12]. Although 2DSTE is simpler to implement and does not require a special transducer, other tools and expertise, 3DSTE is closer to reality [12, 13, 14, 15, 16]. According to current professional guidelines, while LV rotational mechanics can be evaluated by 2DSTE, 3DSTE is required to accurately measure what it is validated for [12, 20, 21, 22]. Moreover, normal reference values for LV rotational parameters as assessed by 3DSTE have also been determined [17].
LV and RV not only have different embryological origins and hemodynamic environments, but their consequent morphology and contraction patterns differ as well. Moreover, RV and LV are closely related not only due to the fact that they share myocytes and ultimately the interventricular septum but due to the pericardial space itself [11]. The LV is a bullet-shaped heart cavity in the left heart, in systole its cavity becomes smaller, its walls thicken radially, shorten longitudinally and narrow circumferentially. At the same time, the LV has rotational mechanics, which is a known special form of LV movement, with the help of which it optimizes its emptying. According to physiological studies, it is responsible for 40% of the systolic ejection of the LV. Under healthy conditions, the apical region of the LV rotates counterclockwise, while the basal region of the LV rotates clockwise in systole resulting in an LV twist, which is the net sum of these movements. This occurs as a result of the simultaneous contraction of the endocardial and epicardial muscle bundles running perpendicular to each other [1, 2, 3].
The RV is the heart cavity located around the LV on the right side of the heart, it is triangular from the sides, and its cross-sectional image resembles a crescent moon, widening from the apex of the heart towards the base [4]. Although the filling and emptying of the ventricles occur at the same time and are synchronized under healthy conditions, both chambers have characteristic deformation patterns. While RV-free wall strains must be treated separately, the presence of rotational mechanics is characteristic only for LV [1, 2, 3, 11]. The muscle fibers located deep in the RV wall are responsible for the longitudinal movement from the base to the apex, as a result of which the longitudinal axis of the RV shortens and the tricuspid valve moves towards the apex. A long-known and widely accepted M-mode echocardiography-based method is the measurement of the so-called TAPSE, which characterizes this longitudinal displacement of the TA, and is related to RV contraction and shortening with a significant prognostic role [4, 5]. In addition to the above, superficially located circumferential fibers parallel to the TV are responsible for movement towards the cavity of the RV (“bellows” effect) [5, 23].
In order to better understand the coordinated operation of the ventricles, we need to know how the functions of the LV and the RV correlate with each other, e.g., the LV rotational mechanics and TAPSE, characterizing longitudinal shortening of the RV. According to the presented findings, the TAPSE value did not show any associations with basal and apical LV rotations suggesting an absence of any relationship between LV rotational mechanics and RV longitudinal shortening. Interestingly, similarly to LA, RA volumes showed a relationship with LV rotational parameters, which findings require further investigation and can be explained by strong associations between LA and RA volumetric changes [24]. However, further assessments are required to confirm the presented findings, even in certain pathologies.
We consider it to be important to mention the following limitations:
- Image quality is a significant limitation of 3DSTE, which is worse than that of 2DE [13, 14, 15, 16].
- Although detailed global and segmental LV strain measurements could be performed using the same 3D LV casts, our study did not aim to determine them.
- 3DSTE-derived characterization of the TA function was not aimed either.
- Moreover, volumetric and functional characterization of other cardiac chambers was not performed either.
- We did not plan to validate 3DSTE-derived LV rotational parameters [20, 21, 22] and TAPSE measurement [9] due to their validated nature.
- A one-dimensional parameter (TAPSE) does not sufficiently express the characteristics of a particular RV function. Characterizing the function of the RV with a more appropriate parameter would be much more worthy.
- Healthy volunteers were included in the study, however, neither special laboratory tests nor imaging tests were performed to rule out possible subclinical abnormalities.
3DSTE-derived LV rotational parameters and TAPSE are not associated suggesting that LV twist is independent of RV longitudinal shortening in healthy circumstances.
The data sets generated and analyzed during the current study are not publicly available due to local restrictions but are available from the corresponding authors on reasonable request.
